Building an inclusive color system for data visualization
Overview
Our team set out to redesign the default data visualization color palettes for customer dashboards. The goal was to create an accessible, scalable system that worked in light and dark modes, aligned with our design system, and supported users with color vision deficiencies.
Client
Qualtrics
Role
Senior Product Designer
Timeline
6 week
Tools
Figma, Viz Palette, Color Contrast Checker, Color Vision Simulator
Challenge
The existing palettes were outdated and inconsistent with the updated brand. They were designed only for white backgrounds, lacked adequate color contrast, and made it difficult to interpret data with many categories. While a single high-contrast palette existed for accessibility, it had to be manually applied by the dashboard editor. We asked: why not make all palettes accessible by default?
New Palette Requirements
Use updated design system colors
Pass accessibility standards for color contrast with background (3:1 or more)
Support light and dark mode color mapping
Repeat logically when the number of data points exceeds the number of colors
Ensure neighboring colors are distinguishable, even when considering varied forms of color blindness
Approach
I took a collaborative, systems-level approach to research by auditing tools, observing team workflows, and aligning process improvements with ongoing company initiatives.
Audit and Accessibility Research
I conducted a thorough accessibility audit of the current palettes using tools like WCAG contrast checkers and simulators for various types of color blindness.

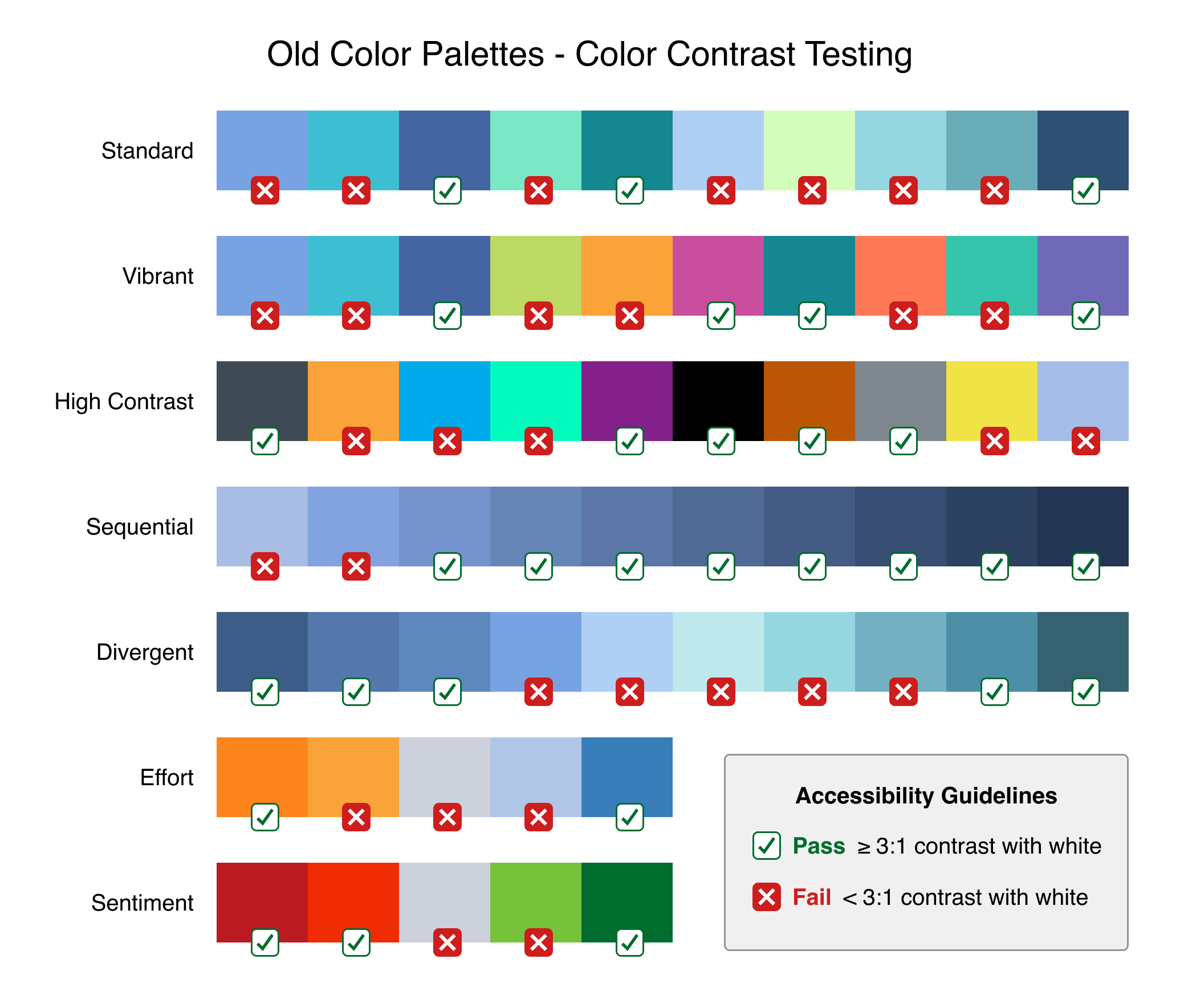

When tested, 50% of all colors failed to meet the accessible guidelines of having 3:1 or greater color contrast ratio. One way to mitigate contrast issues is to add a border around elements like bar graphs, but this doesn’t translate well for certain visualizations like line graphs.

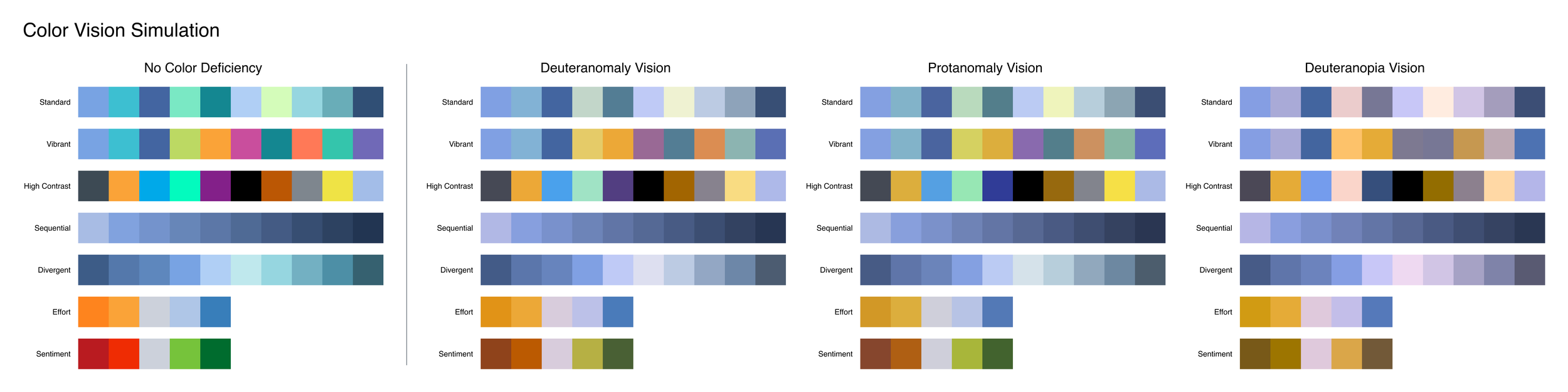

Testing the palettes with a color deficiency simulator helped me identify when neighboring colors were not differentiated.
Align Palettes with User Needs
My team and I also audited the existing palettes against user needs. Each palette needed to support both visual clarity and emotional tone. We identified key use cases and grouped them into our core palette types.
Users can always create their own custom color palettes, but creating better default palettes reduces the need for customization, which saves time and effort in dashboard setup.
Standard
A cool-toned palette with 9 unique colors for general categorical data
Warm
A warm-toned palette with 9 unique colors for general categorical data
Vibrant
A set of 10 unique colors that maximizes contrast with the background for general categorical data
Sequential
Two 5-color sequential palette using lightness and darkness to communicate ranked or graduated data
Divergent Sentiment
A 5-color palette from red (negative sentiment) to green (positive sentiment) for visualizing deviation from a neutral midpoint
Divergent Effort
A 5-color palette from orange (high effort) to blue (low effort) for visualizing deviation from a neutral midpoint
System Integration

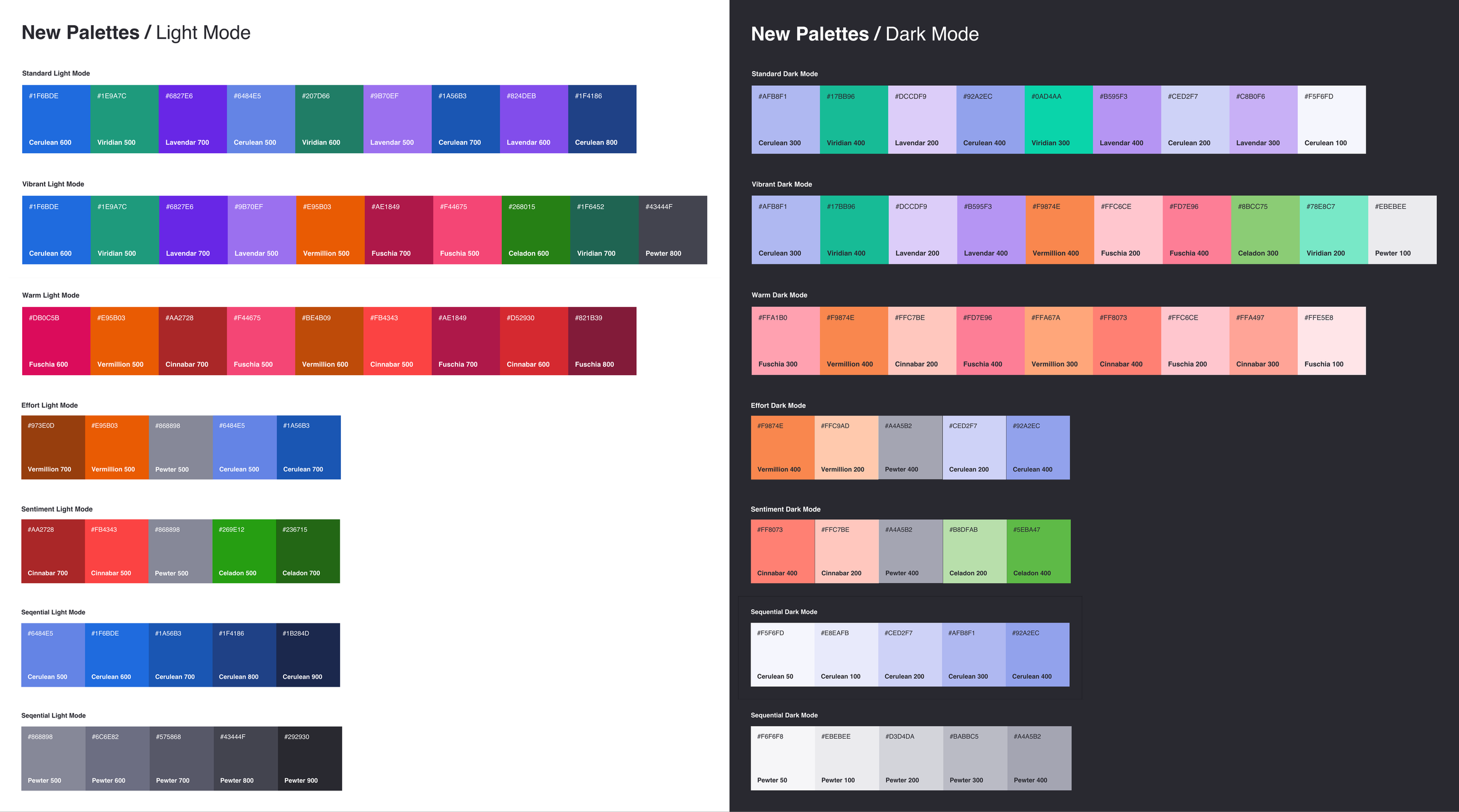

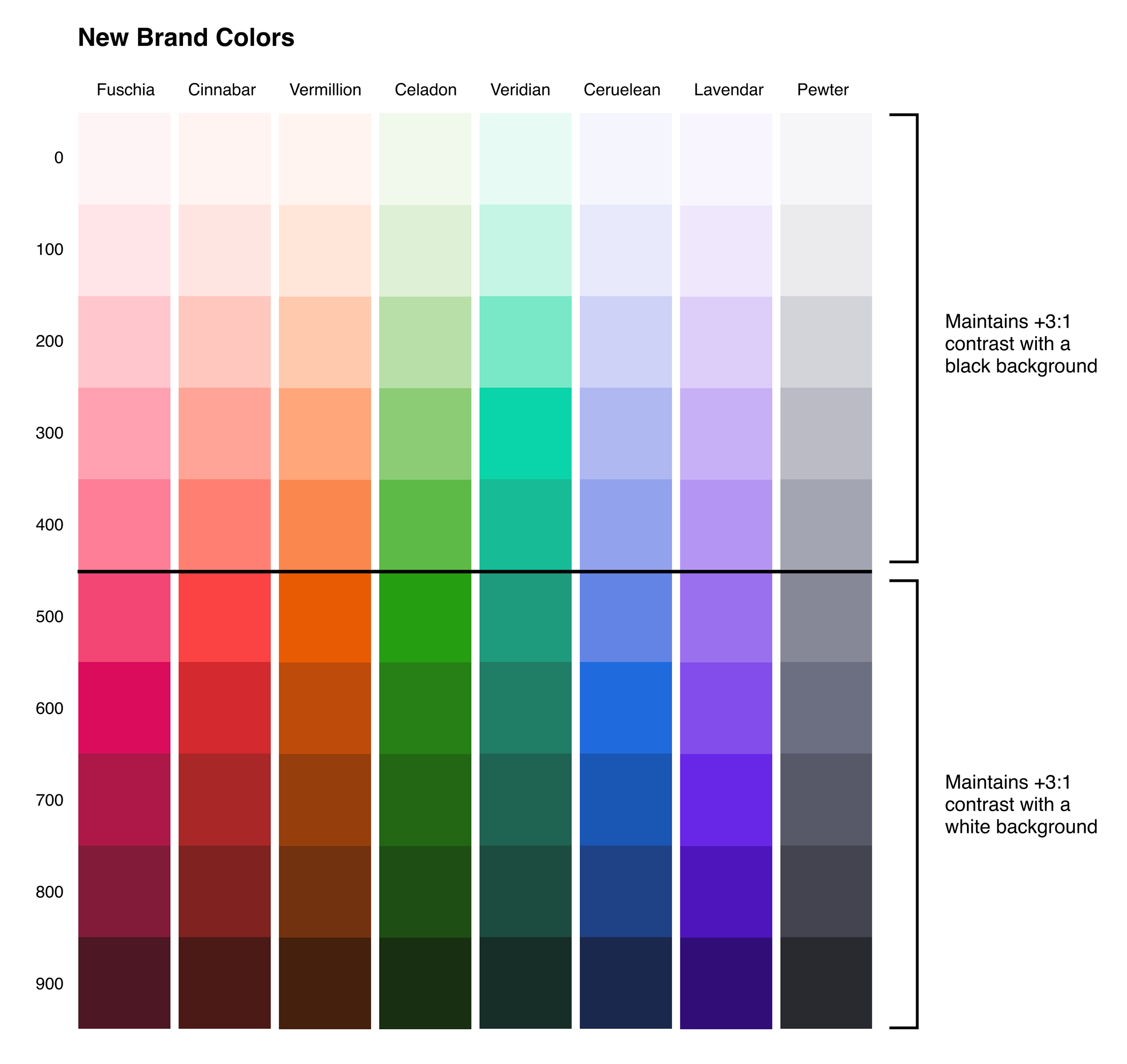

To ensure consistency with our new design system, I used the predefined 8 color ramps (each with 10 values) as building blocks. These ramps were designed with accessibility in mind, making them an ideal foundation. I mapped each palette type to specific values from the ramps, testing combinations iteratively.
Given that graphics require at least a 3:1 contrast ratio with their background, I was able to split colors up based on use in light or dark mode.
Color Theory and Semiotics
I considered color theory and color semiotics to ensure meaning was implied for certain palettes, but wasn’t unintentionally implied for others. For example, as a US-based company we use red to mean negative sentiment in our language analysis, but for eastern cultures red is associated with luck and happiness. For our enterprise customer Target, red is associated with the brand and should not be used to imply negative feedback.
Within our own color system, the color Cinnabar 500 (a bright red) has different visual meanings in different contexts. When designing palettes it was important to control for the order colors appear to ensure appropriate contrast with neighboring colors when a visualization contained 1, 2, 3, 4, or any number of data points.
One way to make our palettes more accessible for users with color deficiencies is to choose colors from separate color ramps to place next to each other. For example, choosing Fuschia 500 and Vermillion 500 as neighbors would likely not be distinguishable for users with certain color deficiencies, but Fuschia 500 and Vermillion 700 would have visual contrast even in grayscale.
Prototyping and Testing

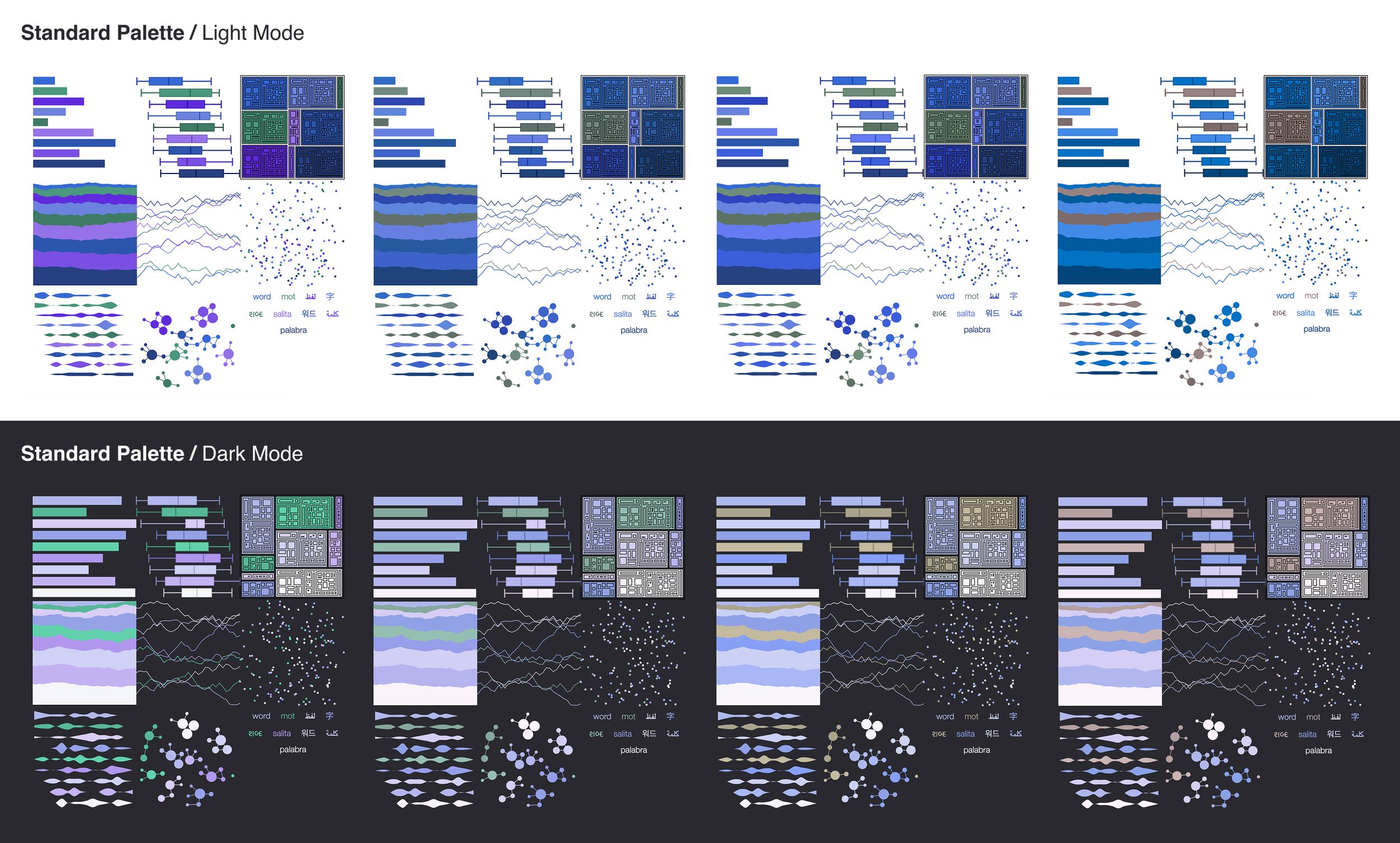

Using Figma and data visualization tools, I prototyped each palette across both light and dark themes. I simulated common color vision deficiencies and ran usability tests internally to confirm that the palettes were distinguishable and readable.
I also built a system for fallback and repetition logic, ensuring that when data visualizations included more categories than colors, the palette would repeat with minimal confusion—by maintaining color order and legibility.
Outcome
The final result was a set of seven color palette groups that are fully accessible under WCAG 2.1 AA guidelines, adaptable to both light and dark themes, and aligned with our design system for long-term scalability. These palettes significantly improve readability and data comprehension across customer dashboards and give product teams the flexibility to select the right palette for their use case.
The new palettes are now used across all customer-facing dashboards and internal reporting tools, providing a consistent, inclusive, and professional visual language for our data.
Additional Accessibility Measures
In addition to redesigning the color palettes, our team took several steps to improve accessibility across data visualizations:
Added a viewer-facing toggle to switch the dashboard between pattern fills and color fills for additional differentiation between data points.
Standardized tooltip behavior and labels across data visualizations
Supported keyboard navigation for interactive charts
Advocated for screen reader compatibility to ensure information was accessible to all users
Helped define best practices for accessible chart interactions across the product
These enhancements laid the groundwork for a more inclusive experience throughout the customer dashboards.
